X-95 PRO OE-Level Full System Diagnostic Tool
- Extensive Vehicle Compatibility
- Advanced Diagnostic Capabilities
- Powerful Hardware and User-Friendly Interface
- Support for Advanced Protocols(CANFD/DoIP/J2534)
- Comprehensive Maintenance Functions
- Rich FunctionalExpansion Modules
- Remote Diagnostic Capabilities
Description
Accessories
Comparisons
Description
Description

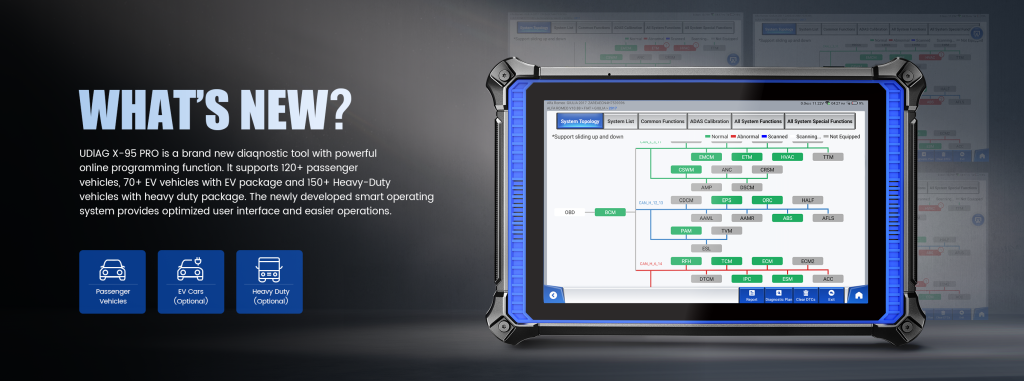

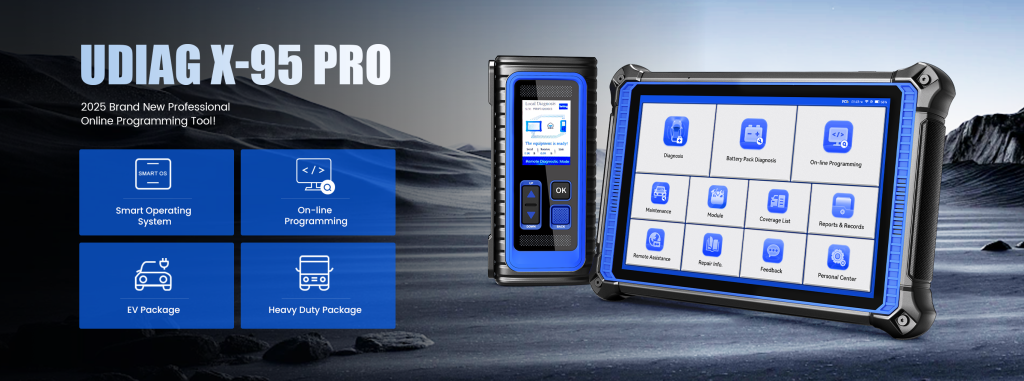

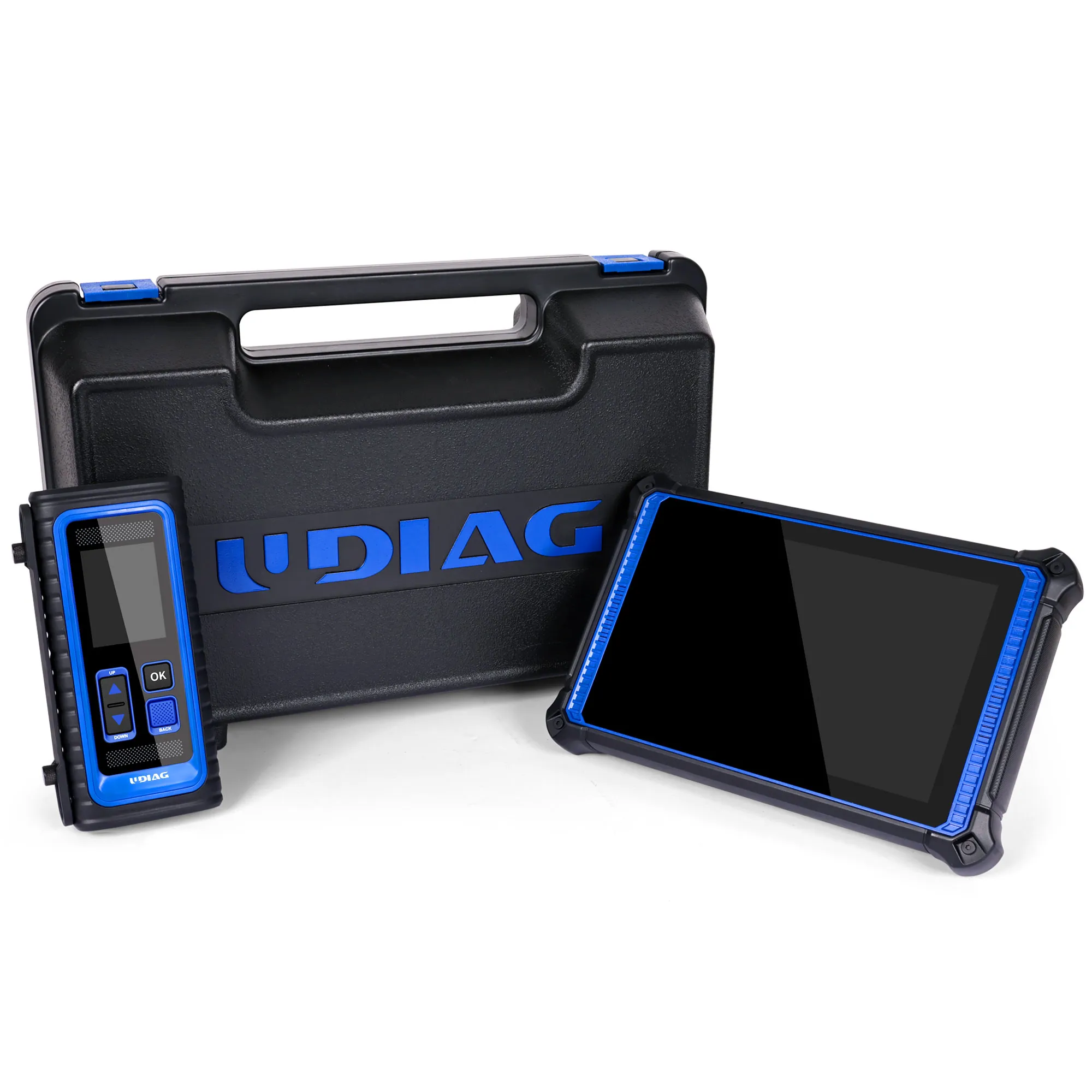

The UDIAG X-95 PRO is a professional-grade OE-level diagnostic tool designed for modern workshops. Powered by a quad-core Android tablet with a 10.1-inch HD touchscreen and dual Wi-Fi, it delivers fast, intelligent diagnostics across 120+ passenger vehicles, with optional support for 70+ EVs and 150+ heavy-duty vehicles. It supports CANFD, DoIP, and J2534 protocols, offering full-system diagnostics, bi-directional tests, and powerful online programming. With 41+ maintenance functions and optional modules like ADAS, TPMS, video scope, and oscilloscope, the X-95 PRO is the ideal all-in-one solution for efficient, advanced vehicle diagnostics.
Features
Extensive Vehicle Coverage
UDIAG X-95 PRO diagnostic scanner supports 120+ passenger vehicles, 70+ electric vehicles (EVs, optional), and 150+ heavy-duty vehicles (optional).

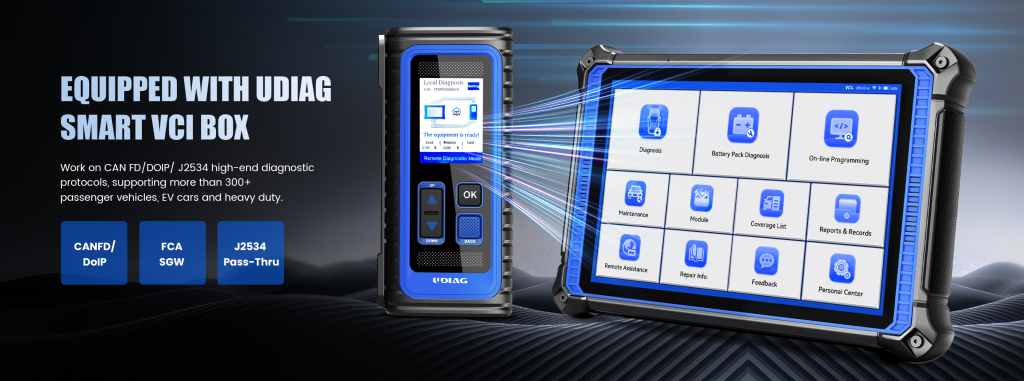

Advanced Protocol Support
X-95 PRO OE-level (Original Equipment Level) full system diagnostic tool supports multiple advanced protocols, including CANFD, DoIP, and J2534, and is capable of providing accurate diagnostics for modern high-end vehicles.

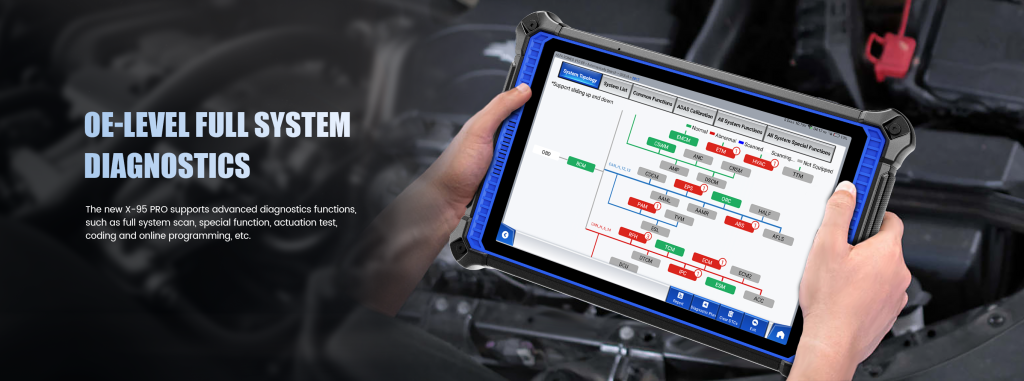

OE-Level Full-System Diagnostics
The new X-95 PRO supports advanced diagnostics functions, including intelligent system scans, actuation tests, special functions, coding, and online programming, etc.

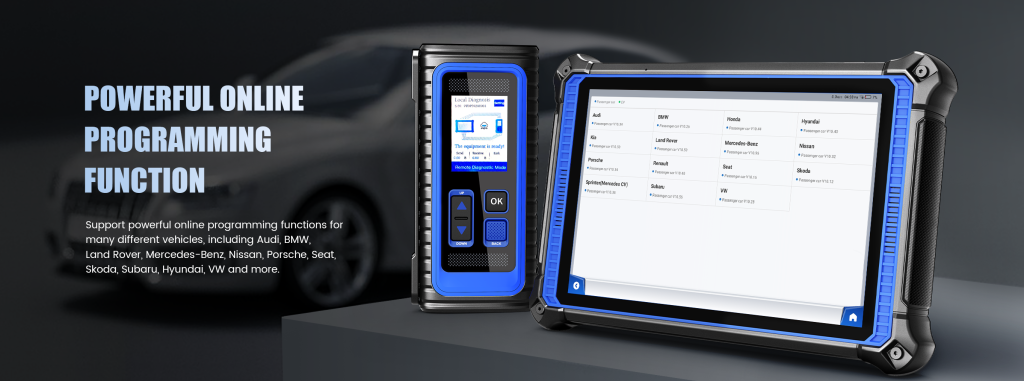

Powerful Online Programming
The X-95 PRO automotive diagnostic tool supports powerful online programming capabilities for many different vehicles, including Audi, BMW, Land Rover, Mercedes-Benz, Nissan, Porsche, Seat, Skoda, Subaru, VW, and more.
Advanced Battery Pack Diagnostics.
X-95 Pro car diagnostic scanner is compatible with a wide range of electric vehicles and battery brands (optional feature).

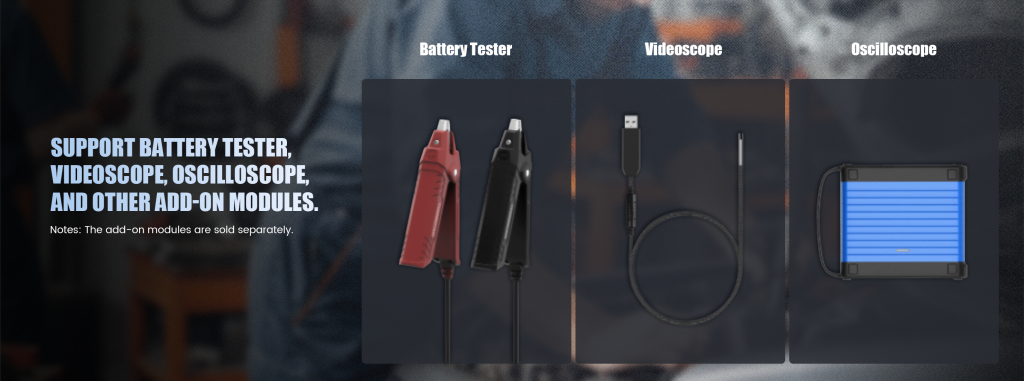

Modular Function Expansion
The X-95 PRO diagnostic scanner also supports additional tools like video scope, oscilloscope, tire pressure monitoring systems (TPMS), and advanced driver assistance systems (ADAS) for specialized diagnostics.
10.1-Inch High-Performance Android Tablet
The X-95 PRO diagnostic tool is equipped with a 10.1 inch LCD touch screen, 4GB RAM + 128GB ROM, a high performance quad-core processor and dual Wi-Fi communication. It operates smoothly and responds quickly.
Over 41 Service Maintenance Functions
X-95 PRO diagnostic tool supports 41 required maintenance functions, such as AT adaption, adjust fuel, injector coding, odometer, immobilizer, etc. It covers essential reset and calibration operations required for comprehensive vehicle maintenance.
2 Years Free Update
The X-95 PRO diagnosis system includes 2 years of free software updates, ensuring compatibility with evolving vehicle systems and improved performance over time.
Advantages
- Extensive Vehicle Compatibility
- Advanced Diagnostic Capabilities
- Powerful Hardware and User-Friendly Interface
- Support for Advanced Protocols(CANFD/DoIP/J2534)
- Comprehensive Maintenance Functions
- Rich FunctionalExpansion Modules
- Remote Diagnostic Capabilities

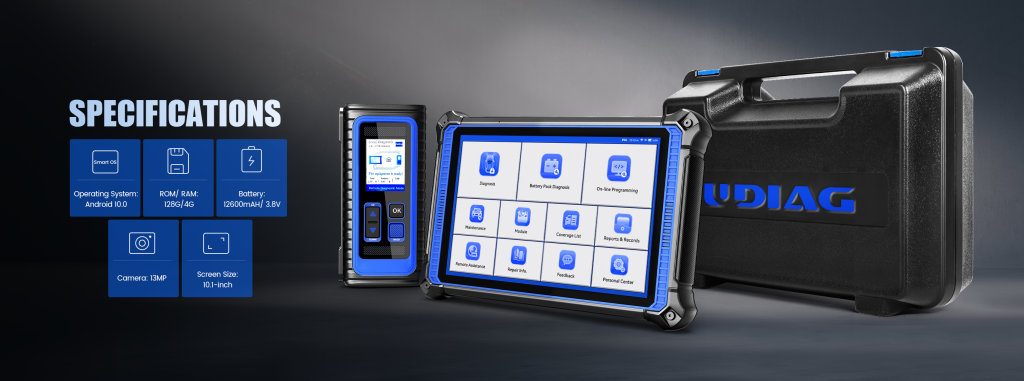

Specifications
Operating System | Android 10.0 |
Display | 10.1″ Touch Screen, 1280*800 |
Processor | Cortex-A53, 2.0GHZ |
Memory | 4GB RAM & 128GB ROM |
Camera | 13MP |
Operating Temperature | -10 to 50°C (14 to 131°F) |
Input Voltage | DC/12 V (9-35 V) |
Power | 3.8V, 12600mAh polymer li-ion battery |

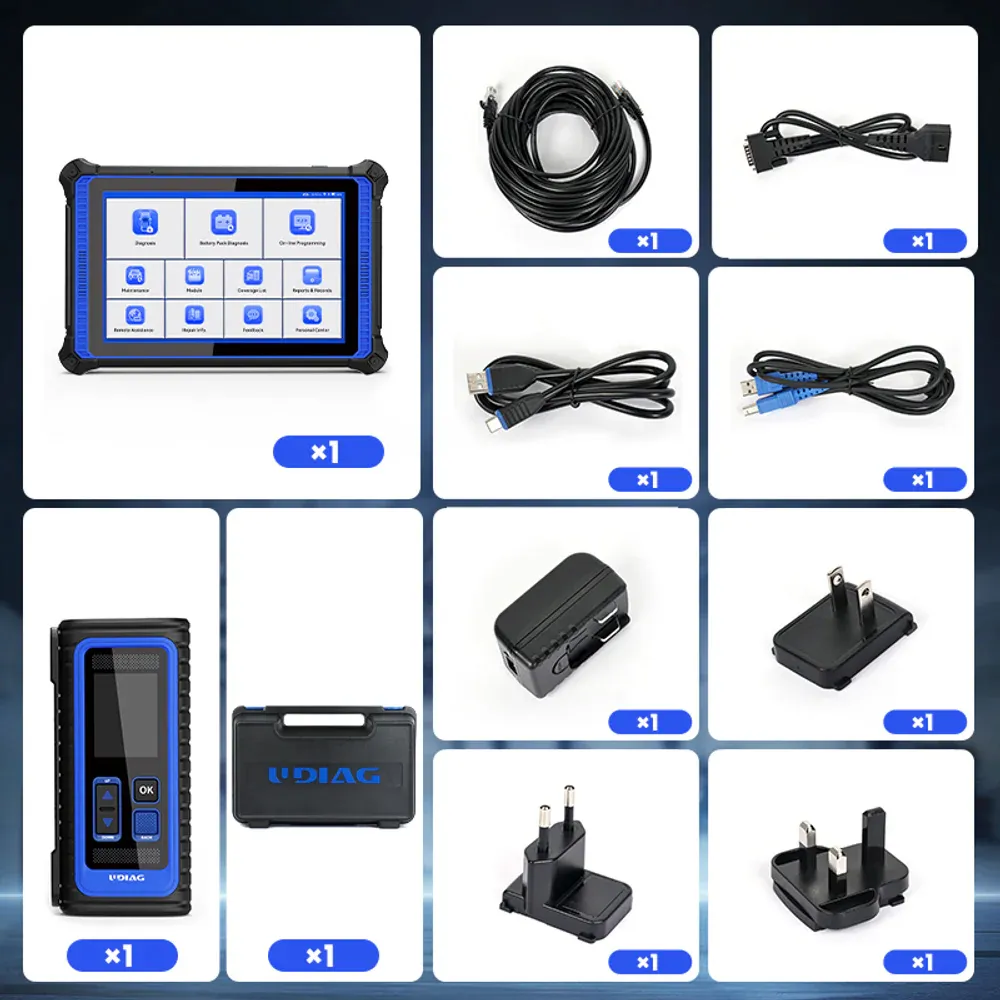

Accessories
Accessories
package
Video
Comparisons
Model | X-95 PRO | X-90 PRO | X-50 | X-30 |
Parameters | ||||
RAM/ROM | 4GB/128GB | 2GB/64GB | 1GB/72GB | 1GB/72GB |
Processor | 2.0GHz | 1.8GHz | 1.4GHz | 1.4GHz |
Display | 10.1-inch | 10.1-inch | 7-inch | 7-inch |
Wireless VCI | √ | √ | √ | √ |
Battery Capactiy | 12600mAh | 10000mAh | 7200mAh | 7200mAh |
Diagnostic Function | ||||
System Diagnostics | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems |
Vehicle Coverage | US, Asian & European more than 110+ | US, Asian & European more than 110+ | US, Asian & European more than 110+ | US, Asian & European more than 110+ |
Automatic Detection | Auto-VIN | Auto-VIN | Auto-VIN | Auto-VIN |
Live Data | √ | √ | √ | √ |
ECU Information | √ | √ | √ | √ |
Active Test | √ | √ | √ | √ |
CAN FD Protocol | √ | √ | √ | √ |
DoIP Protocol | √ | √ | √ | √ |
OBDII Test Modes | All 10 Test Modes | All 10 Test Modes | All 10 Test Modes | All 10 Test Modes |
Adaptation/Coding | √ | √ | √ | × |
Security Access | √ | √ | √ | × |
Component Actuation | Bi-directional | Bi-directional | Bi-directional | Bi-directional |
Maintenance Resets | 41+ Service Resets | 40+ Service Resets | 40+ Service Resets | 40+ Service Resets |
Immobilizer (Smart Key matching, programming) | Optional | Optional | Optional | × |
EEPROM (Odometer, SAS, Airbag, Read Pin Code) | Optional | Optional | Optional | × |
Refresh Hidden Feature for VW, AUDI, SKODA, PORCHE | Optional | Optional | Optional | × |
Guided Function for VW Vehicles | √ | √ | √ | × |
Offline Coding for FORD | √ | √ | √ | × |
Remote Support | √ | √ | √ | √ |
Videoscope | Optional | Optional | Optional | Optional |
Oscilloscope | Optional | Optional | Optional | Optional |
Multi-language Support | √ | √ | √ | √ |
Wi-Fi Print | √ | √ | √ | √ |
Software Updates | 2 Years Free Update Via Wi-Fi | 3 Years Free Update Via Wi-Fi | 3 Years Free Update Via Wi-Fi | 18 Months Free Update Via Wi-Fi |
