Description

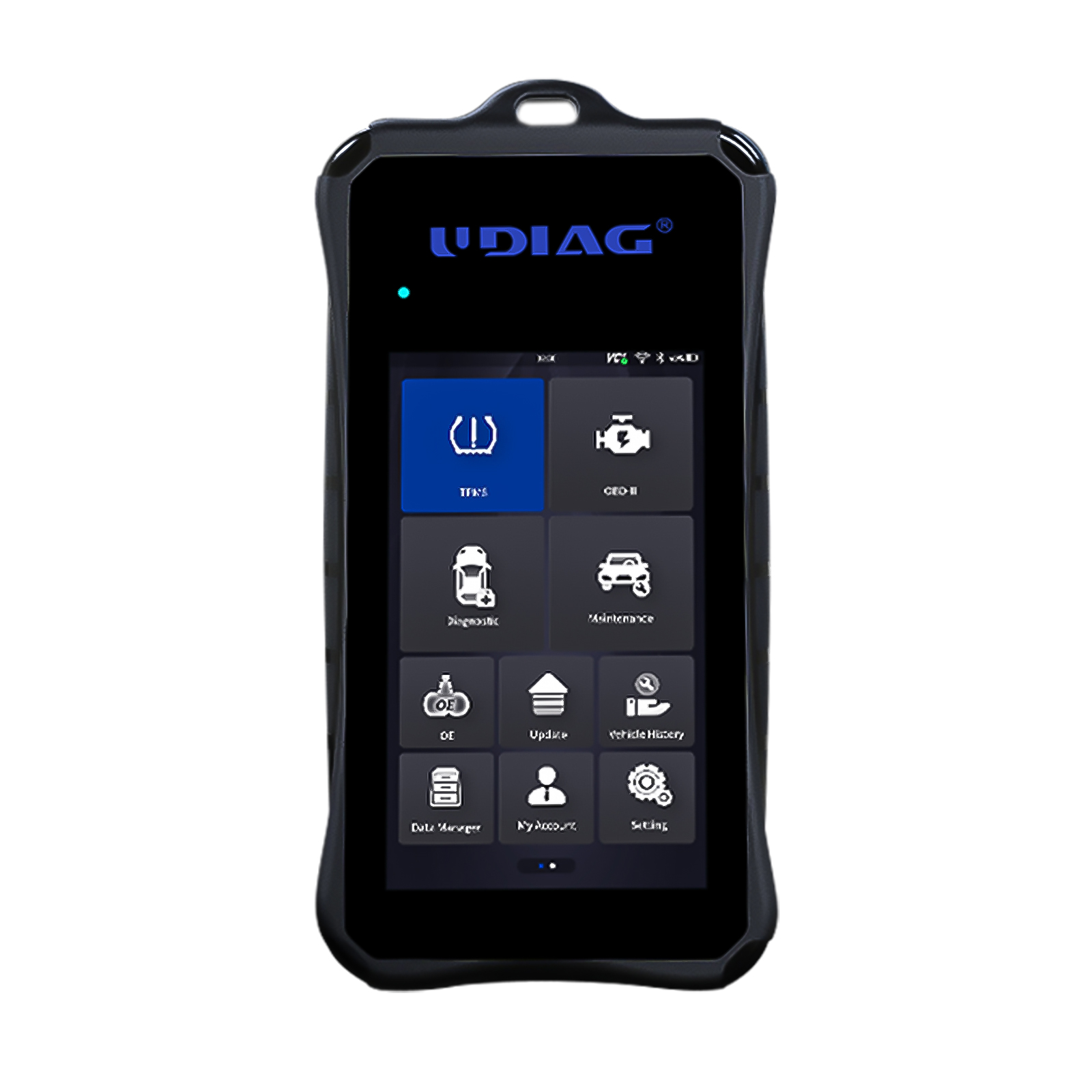

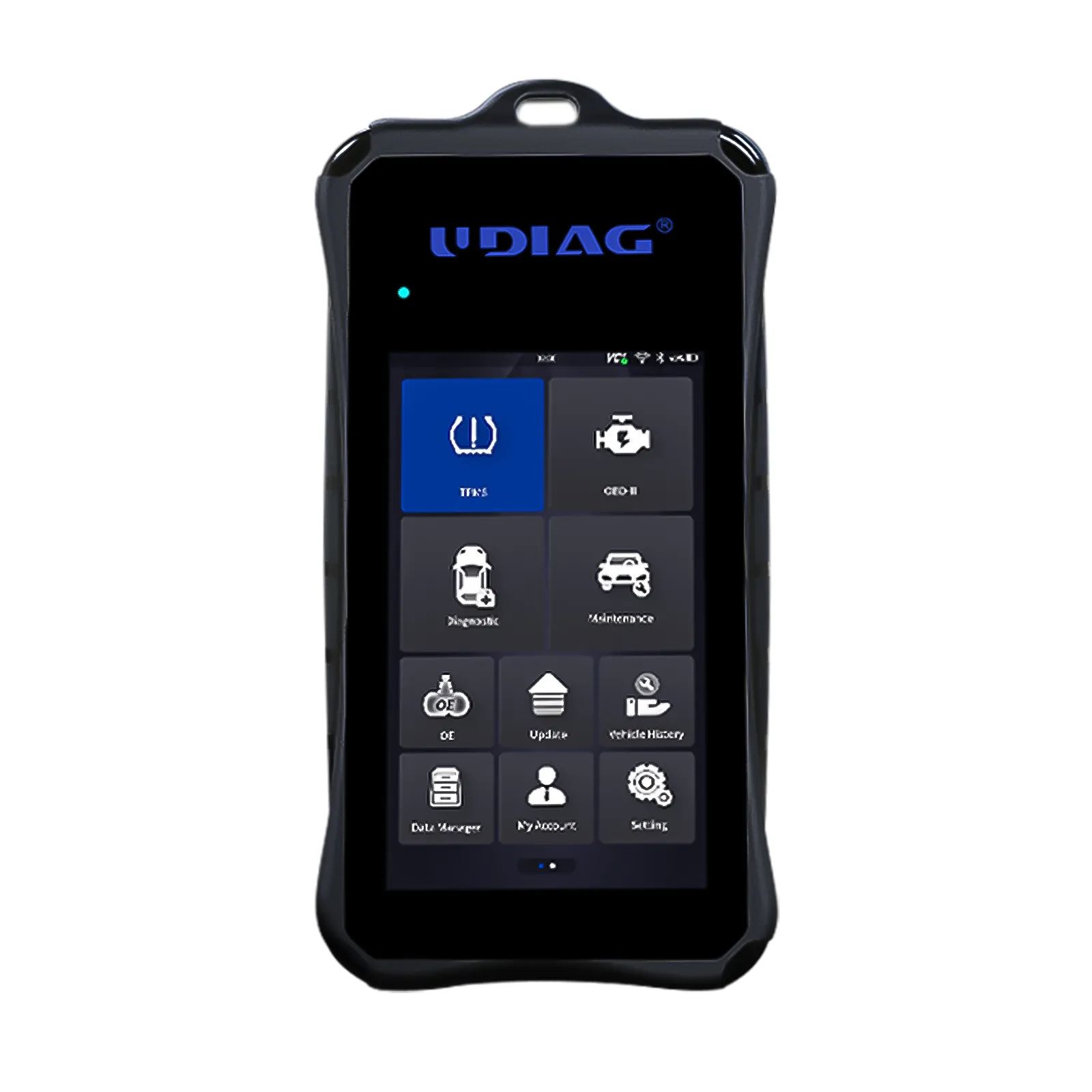

The X-20 is a professional TPMS diagnostic tool that supports 99% of sensors (315MHz/433MHz) for global vehicles. This all-in-one TPMS service tool performs sensor programming, cloning, activation, and OBD relearns with auto sensor detection. Features full OBD2 diagnostics (DTC scan/clear) plus tire pressure reset functions. Its 5.5-inch color display and multilingual interface ensure easy operation. With free lifetime updates, it’s the perfect tire pressure tool for auto workshops and tire specialists seeking fast, accurate TPMS service solutions.
Features
Smart Vehicle Recognition
Auto VIN Scan – Instantly identifies vehicle make/model for seamless TPMS service.
Future-Proof TPMS Coverage
Triggers 100% of sensors – Supports all known OEM/aftermarket TPMS, including 2024-2025 models (315MHz/433MHz).
Comprehensive Sensor Data
Reads real-time TPMS metrics: Sensor ID, tire pressure/temperature, and battery health.
Advanced Programming
Program & Relearn UDIAG sensors + Relearn all major brands with OBDII or auto-relearn.
Full TPMS Diagnostics
Diagnose TPMS faults (DTCs), sensor failures, and system malfunctions.
OBDII & Full Systems Diagnostics
10-mode OBDII diagnostics + full-system scans (ECU, ABS, SRS, etc.) via wireless VCI.
Wireless Diagnostics
Supports wireless diagnostics on all available car system modules, to read and clear codes, view freeze frame, check live data and ECU information, conduct actuation test, etc.
Cutting-Edge Protocols
Works with CAN FD & DoIP for modern vehicle networks.
Top 10 Service Functions
Integrate the most useful 10 service functions: ABS bleeding, BRT, TPMS, DPF, EPB, injector coding, oil reset, SAS, clutch adaptation and change tire.
Lifetime Free Updates
Always stays current with new sensors and vehicle protocols.
Advantages
- Comprehensive TPMS Coverage
- All-in-One TPMS Service
- Intelligent Auto Recognition
- Full System Diagnostics
- User-Friendly Design
- Free Lifetime Updates
Specifications
| Model |
X-20 |
| Display |
5.5” LCD Touch Screen; 720*1280 pixel |
| Working Temperature |
-10 to 70°C |
| Storage Temperature |
-20 to 80°C |
| Operating System |
Android 9.0 |
| RAM/ROM |
2GB/32GB |
| Built-in Battery |
5000mAh |
| Dimensions |
195*100*25mm (L*W*H) |
| Power |
8 to 18 V provided via vehicle |
| Supported Protocols |
CANFD, DOIP, ISO9141-2, ISO14230-2, ISO15765-4, K/L Lines, Double K Line SAE-J1850VPW, SAE-J1850PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol. |
