Description

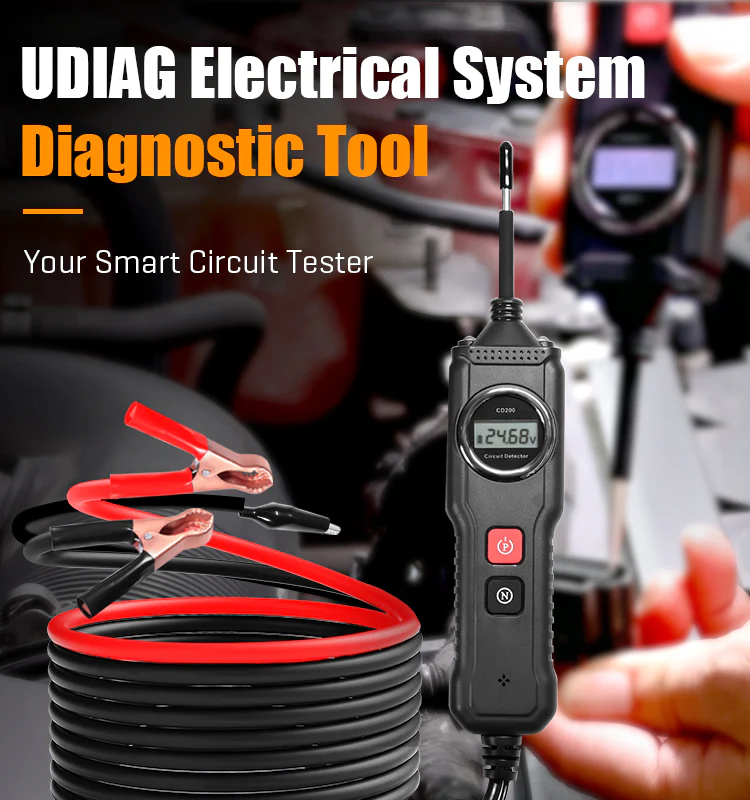

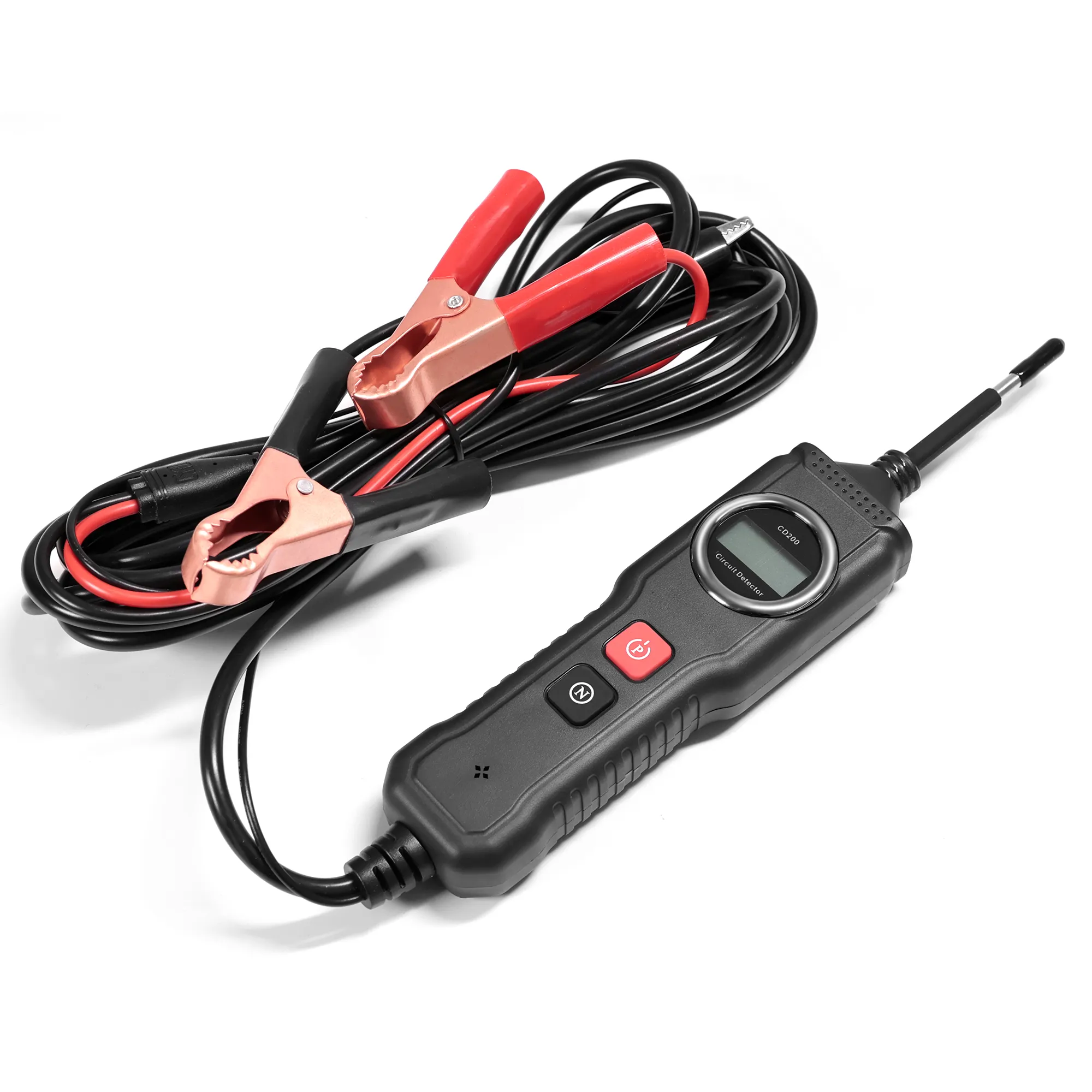

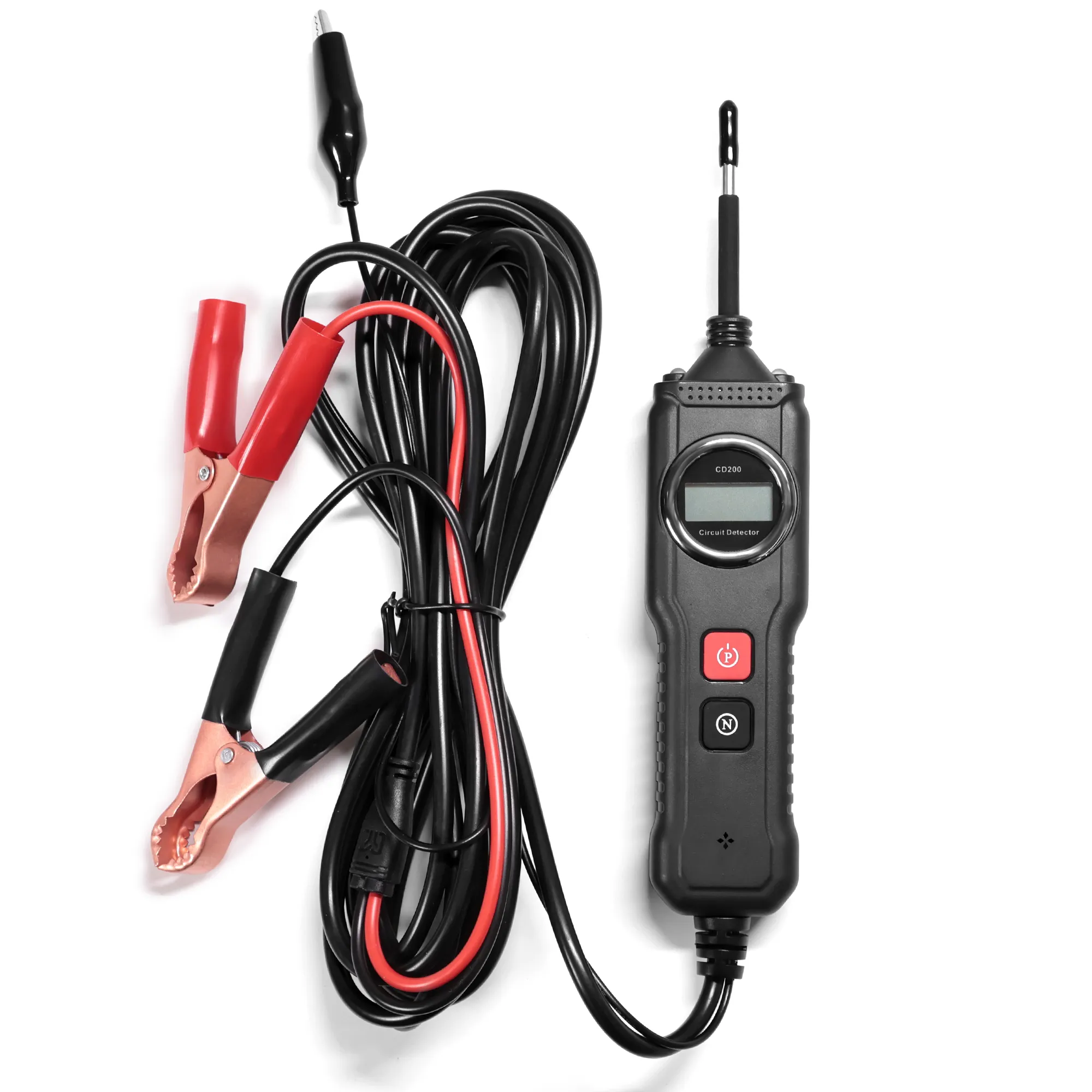

The UDIAG CD200 Vehicle Circuit Detector is a professional-grade electrical diagnostic tool. It is suitable for diagnosing circuits with 6-40V power supply. It has a compact design and strong functionality, with reverse polarity and overload protection. This tool’s probe can be used for circuit continuity testing, voltage detection, polarity testing, and component activation. It can quickly detect short circuits, broken connections, or poor contact in vehicle electrical system components, assisting users in understanding the vehicle’s condition more quickly and accurately. It is a high-efficiency and advanced testing tool that can greatly improve user productivity.

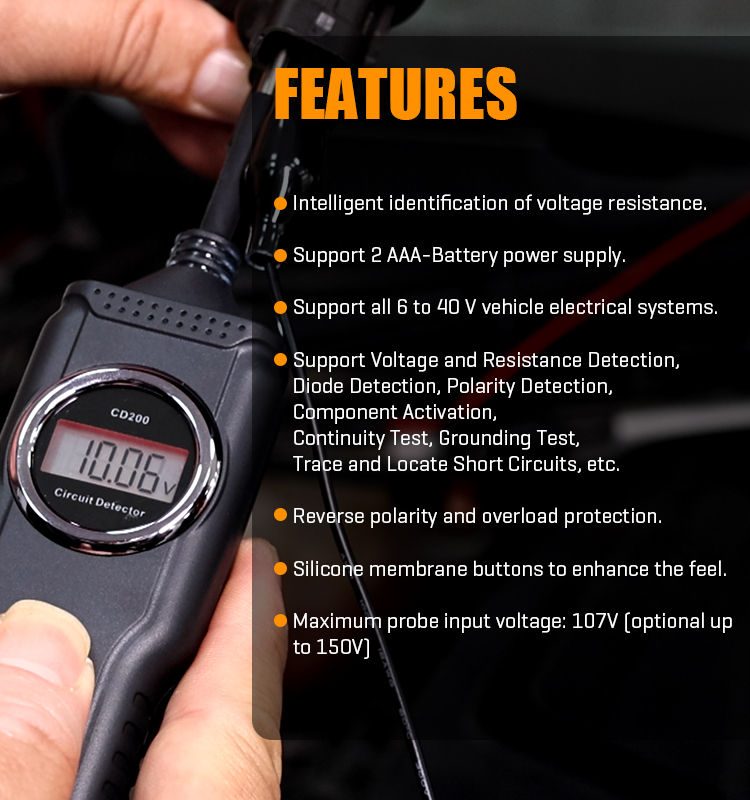

Features
Voltage Detection
Accurately measures voltage levels in circuits ranging from 6V to 40V, suitable for various vehicle types.
Resistance Detection
Measures resistance values between 1 ohm and 100K ohms, aiding in identifying faulty components.
Diode Testing
Evaluates diode conditions to ensure proper functionality within the circuit.
Polarity Detection
Identifies positive and negative terminals, preventing potential reverse polarity issues.
Component Activation
Allows activation of components directly from the probe for functional testing.
Continuity Testing
Checks for open or closed circuits, ensuring proper electrical flow.
Grounding Test
Verifies the integrity of grounding connections within the electrical system.
Short Circuit Tracing
Locates short circuits efficiently, aiding in quick diagnostics.
Overload Protection
Features built-in protection to prevent damage from excessive current.
Automatic Identification
Automatically detects voltage, resistance, and diode conditions, streamlining the diagnostic process.
Battery-Powered Operation
Operates using two built-in AAA batteries, eliminating the need for external power sources.
99% Vehicles Support
Cars, motorcycles, SUVs, buses, construction vehicles, pickups, off-road vehicles, yachts, etc.

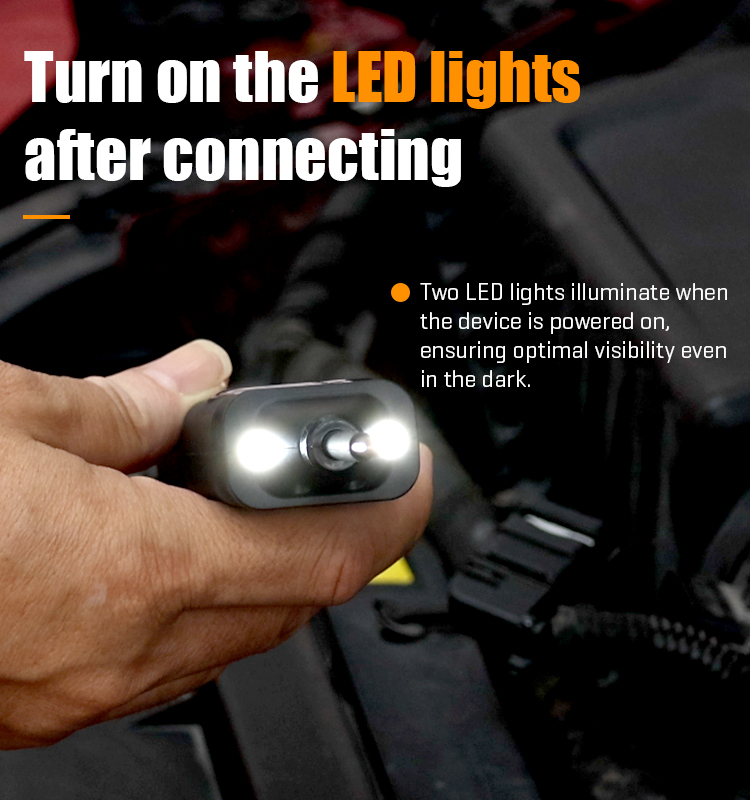

Built-in LED Light
Equipped with 2 LED flashlights, providing optimal visibility for detection in dark or dim environments.
Advantages
- Comprehensive Diagnostic Capabilities
- Wide Voltage Compatibility
- Intelligent Identification Capabilities
- Enhanced Safety Protections
- User-Friendly Design
- Portable and Convenient

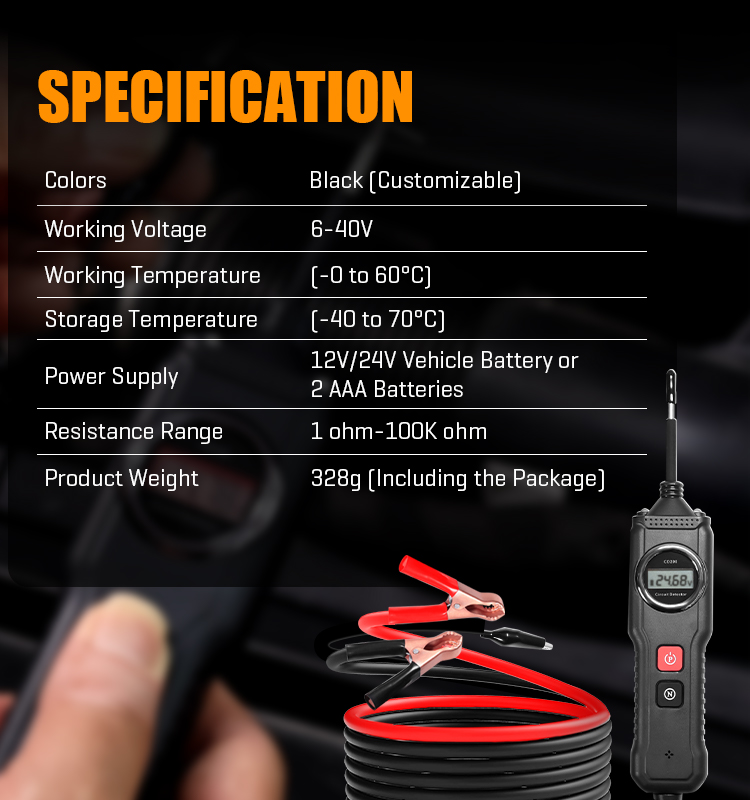

Specifications
| Produc Name |
CD200 Vehicle Circuit Detector |
| Screen Display |
LCD Digital Display |
| Working Voltage |
6-40V |
| Working Temperatere |
(-0 to 60°C) |
| Storage Temperature |
(-40 to 70°C) |
| Power Supply |
12V/24V Vehicle Battery or 2* AAA Batteries |
| Resistance Measurement Range |
1 ohm – 100K ohm |

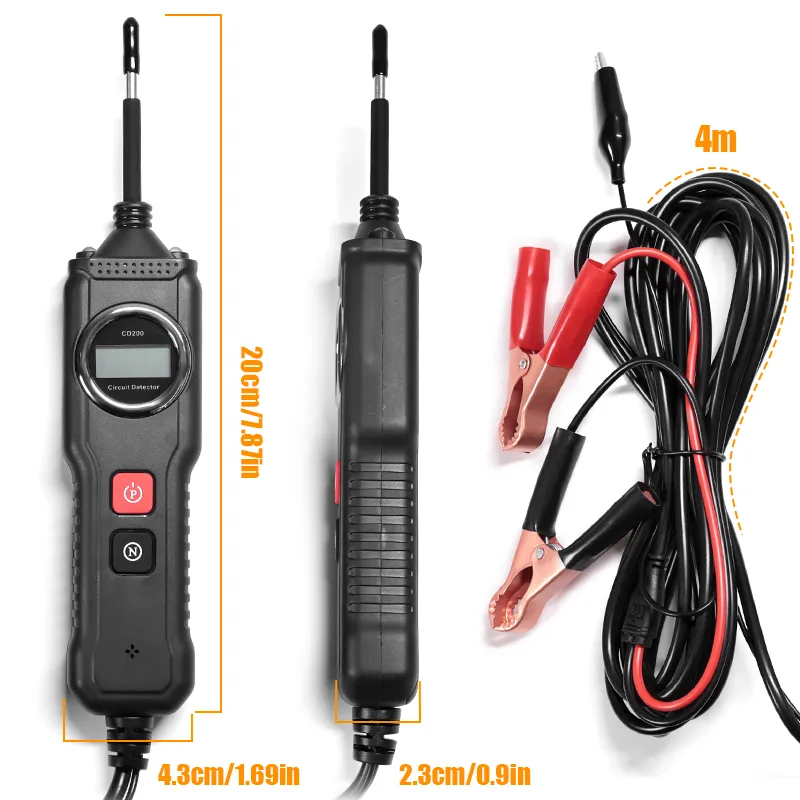

| Product Size |
210*42*20mm |
| Packaging Size |
25*9*5CM |
| Product Weight |
328g (Including the Package) |
