X-50 Full System Diagnostic Tool With Android OS
- Comprehensive Vehicle Coverage
- OE-Level Full System Diagnostics
- Advanced Service Functions
- Bi-Directional Control & Coding
- User-Friendly Android Interface
- Long Battery Life & Portability





Description
Accessories
Comparisons
Description
Description

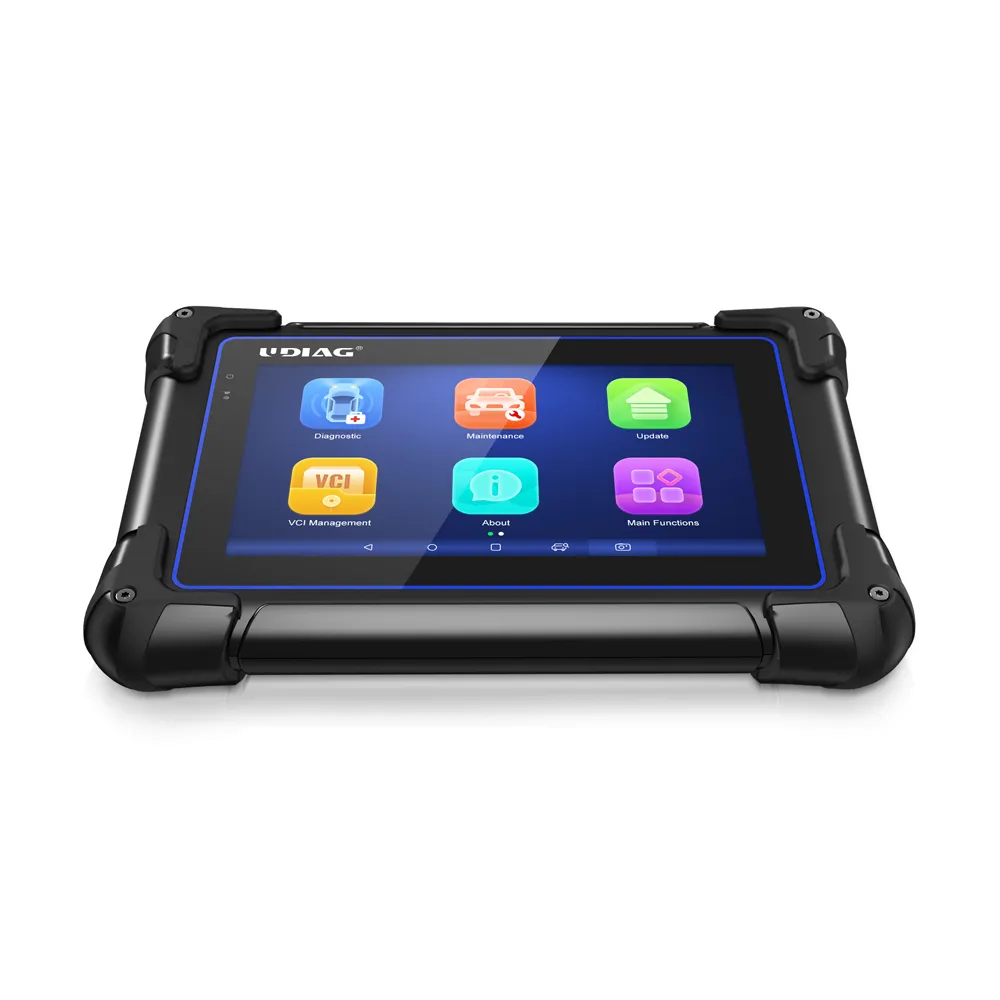

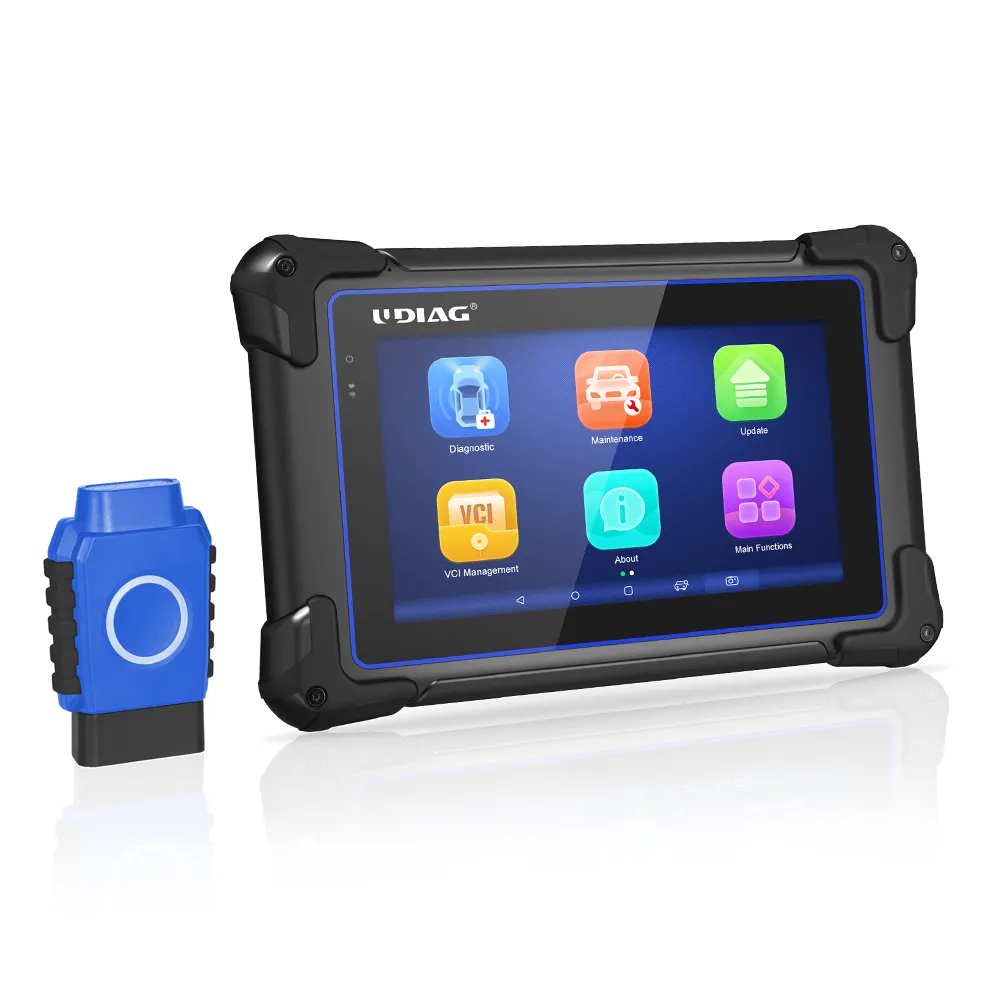

The UDIAG X-50 is a professional automotive diagnostic tablet designed for comprehensive vehicle analysis. Equipped with a 7-inch touchscreen and powered by a Cortex-A7 processor, it operates on the Android multitasking operating system, ensuring swift performance. This car diagnostic tool offers OE-level diagnostics for over 130 vehicle makes, enabling users to read and erase DTCs, view live data, perform active tests, execute module coding and programming. Its wireless Bluetooth connectivity and long-lasting battery ensure efficient, on-the-go diagnostics.
Features
Android Operating System
X-50 featuring the powerful Cortex-A7 processor and a responsive 7.0-inch LCD capacitive touchscreen, running on Android’s multitasking operating system for seamless diagnostics.
Advanced Vehicle Diagnostics
Performs advanced vehicle diagnostics, including ECU information retrieval, live data, adaptations, bi-directional control, functional tests, and system matching and coding, etc.
Extensive Vehicle Coverage
Compatible with over 130 vehicle brands from America, Europe, and Asia, covering models from 1996 to 2025.
OE-Level System Diagnostics
Offers OE-level system coverage for all major electronic systems.
40+ Service Maintenance Functions
Supports 40+ essential maintenance functions, including AT adaptation, fuel adjustment, injector coding, odometer correction, and immobilizer programming, etc.
View Freeze Frame data
Displays freeze frame data and provides real-time live data graphing.
Advanced Protocol Support
Supports CANFD & DOIP to ensure compatibility with latest vehicle systems.
Extremely Long Battery Life
Built-in rechargeable lithium-polymer battery offering up to 30 hours of continuous operation, suitable for extended diagnostic sessions.
Advantages
- Comprehensive Vehicle Coverage
- OE-Level Full System Diagnostics
- Advanced Service Functions
- Bi-Directional Control & Coding
- User-Friendly Android Interface
- Long Battery Life & Portability
Specifications
Operating System | Android 7.1.2 |
Display | 7.0 inch IPS Touch Screen |
Processor | Cortex-A7, 1.4GHz |
Memory | 1GB RAM & 72GB ROM |
Input Voltage | DC/12 V |
Operating Temperature | -10 to 50°C (14 to 131°F) |
Battery | 7200mAh |
Certificates
Accessories
Packing List
Diagnostic Tablet *1 | User Manual *1 |
VCI *1 | Carrying Case *1 |
Power Adapter & Cable *1 |
Video
Comparisons
Model | X-95 PRO | X-90 PRO | X-50 | X-30 |
Parameters | ||||
RAM/ROM | 4GB/128GB | 2GB/64GB | 1GB/72GB | 1GB/72GB |
Processor | 2.0GHz | 1.8GHz | 1.4GHz | 1.4GHz |
Display | 10.1-inch | 10.1-inch | 7-inch | 7-inch |
Wireless VCI | √ | √ | √ | √ |
Battery Capactiy | 12600mAh | 10000mAh | 7200mAh | 7200mAh |
Diagnostic Function | ||||
System Diagnostics | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems |
Vehicle Coverage | US, Asian & European more than 110+ | US, Asian & European more than 110+ | US, Asian & European more than 110+ | US, Asian & European more than 110+ |
Automatic Detection | Auto-VIN | Auto-VIN | Auto-VIN | Auto-VIN |
Live Data | √ | √ | √ | √ |
ECU Information | √ | √ | √ | √ |
Active Test | √ | √ | √ | √ |
CAN FD Protocol | √ | √ | √ | √ |
DoIP Protocol | √ | √ | √ | √ |
OBDII Test Modes | All 10 Test Modes | All 10 Test Modes | All 10 Test Modes | All 10 Test Modes |
Adaptation/Coding | √ | √ | √ | × |
Security Access | √ | √ | √ | × |
Component Actuation | Bi-directional | Bi-directional | Bi-directional | Bi-directional |
Maintenance Resets | 41+ Service Resets | 40+ Service Resets | 40+ Service Resets | 40+ Service Resets |
Immobilizer (Smart Key matching, programming) | Optional | Optional | Optional | × |
EEPROM (Odometer, SAS, Airbag, Read Pin Code) | Optional | Optional | Optional | × |
Refresh Hidden Feature for VW, AUDI, SKODA, PORCHE | Optional | Optional | Optional | × |
Guided Function for VW Vehicles | √ | √ | √ | × |
Offline Coding for FORD | √ | √ | √ | × |
Remote Support | √ | √ | √ | √ |
Videoscope | Optional | Optional | Optional | Optional |
Oscilloscope | Optional | Optional | Optional | Optional |
Multi-language Support | √ | √ | √ | √ |
Wi-Fi Print | √ | √ | √ | √ |
Software Updates | 2 Years Free Update Via Wi-Fi | 3 Years Free Update Via Wi-Fi | 3 Years Free Update Via Wi-Fi | 18 Months Free Update Via Wi-Fi |
